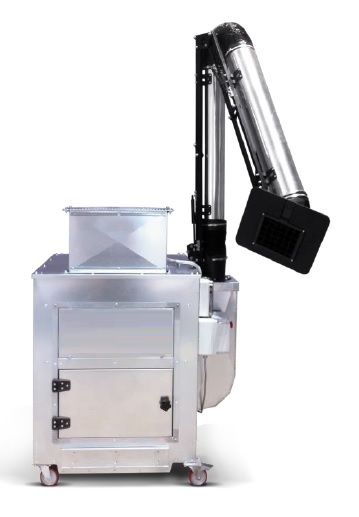

Grutec Mobile Dust Cabinet MONOCUBO with Dry Extraction – 3 x 400 V

The Grutec MONOCUBO mobile dust extraction booth is an efficient solution for workplace dust control. Built from durable galvanized steel, it features premium BIA U.S.G.C./M filter elements with an average filtration efficiency exceeding 95% (equivalent to F9 under EN779 standards).

The filters are self-cleaning, using the advanced "Domino 70 Full" reverse-pressure system, operated via an electropneumatic cyclic timer. This ensures consistent performance and extended filter life.

The booth includes a self-supporting extraction arm with a Ø160 mm diameter and 3-meter length, equipped with a metal hood, handle, and integrated butterfly damper. For maximum efficiency, the hood should be positioned 20-30 cm from the dust source.

• Airflow: 1900 m³/h

• Filtration area: 20 m² with 4 filters (Ø326 mm, H=300 mm)

• Compressed air requirements: Max. 6 bar, 30 L per cleaning cycle

• Dimensions: 900 x 1100 x H1500 mm

• Weight: 300 kg

Price does not include transport and installation costs. The price can be requested via info@grubau.be.
