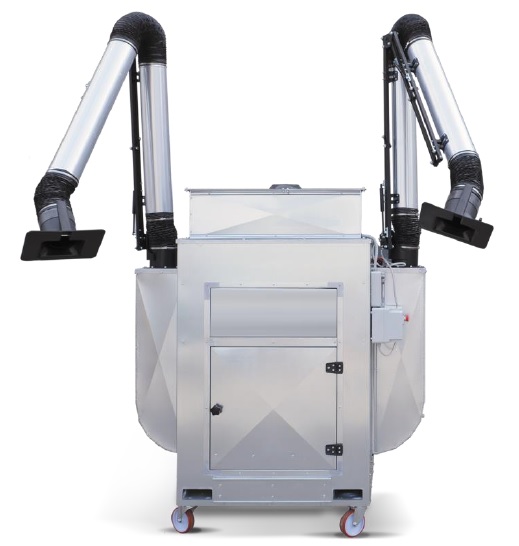

Grutec Mobile Dust Cabinet BICUBO with Dry Extraction – 3 x 400 V

This robust dust extractor is entirely made of galvanized sheet steel and offers an exceptional filtration efficiency of over 95%, thanks to the BIA U.S.G.C./M filter elements, comparable to F9 (according to EN779). The filter elements are self-cleaning thanks to the innovative “Domino 70 Full” dust removal system with backpressure, controlled by a cyclic electro-pneumatic timer.

Equipped with two self-supporting extraction arms (Ø 160 mm, 3 meters long) and fitted with metal hoods with handle and butterfly damper for easy and efficient operation. The extraction hoods should be positioned 20 to 30 cm from the dust-generating area for optimal dust removal.

Main features:

• Number of extraction arms: 2 units

• Airflow rate: 3800 m³/h

• Filter surface: 40 m² (4 filters Ø326mm, H=600mm)

• Compressed air max.: 6 bar, consumption: 30L per cleaning

• Dimensions: 1300 x 1300 x H.2100 mm

• Weight: 450 kg

This powerful extraction system ensures a clean and safe working environment, with efficient and sustainable dust handling.
